Crane Brand：XCMG
Main boom length：43.5m
Counter weight：8 Ton
Working Hours：4001-5000

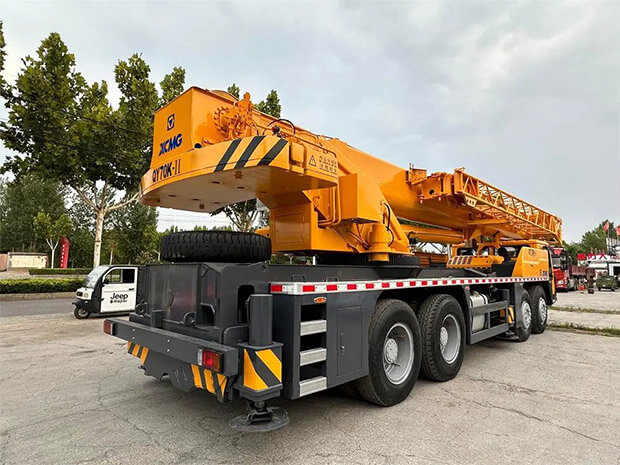

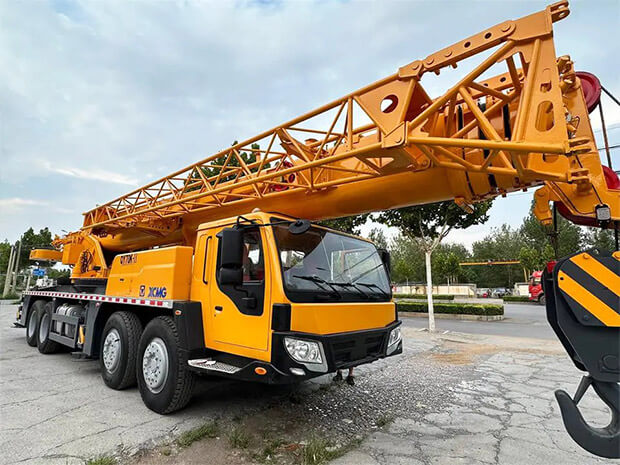

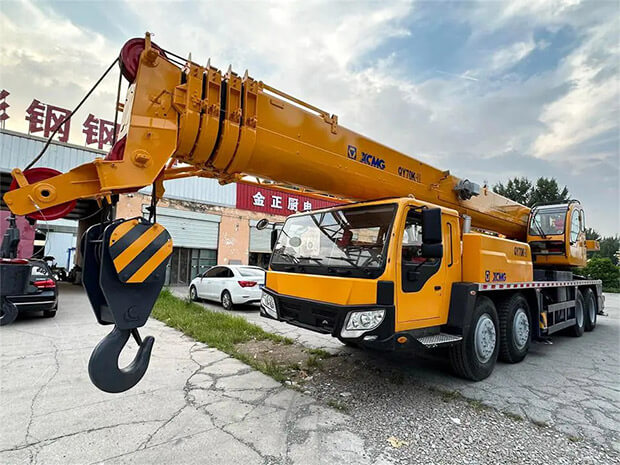

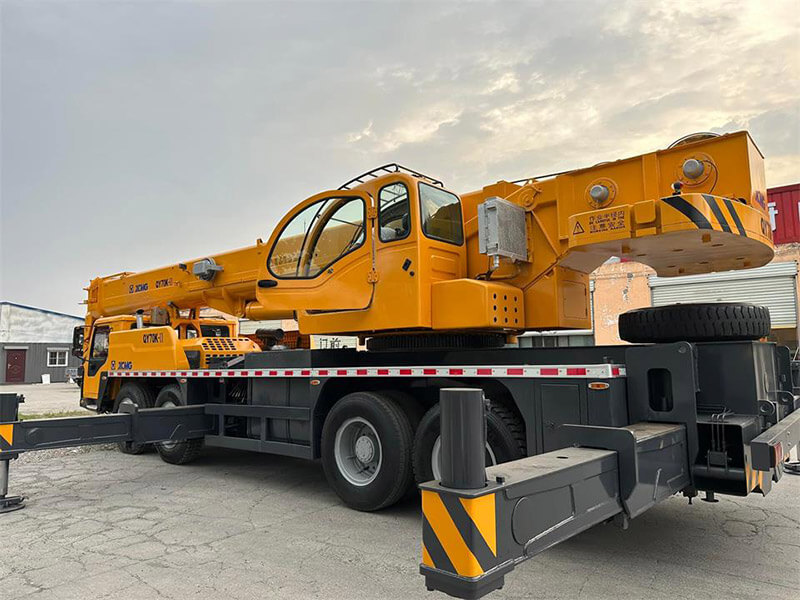

Used QY70K Truck Crane is a high-performance truck crane designed for heavy-duty lifting tasks. With a maximum lifting capacity of 70 tons and a robust chassis, it is powered by a WD615.338 engine that delivers 276 kW at 2200 rpm and a torque of 1500 N.m.
The crane features a five-section U-shaped boom that can extend up to 46.5 meters, with an additional jib for extended reach.XCMG QY70K-II crane is equipped with a high-performance hydraulic system for precise control and energy efficiency, and its spacious, ergonomic cabin ensures a comfortable operating environment for the operator.
|
Description |
Unit |
Parameter value |
|
Max.rated lifting capacity |
Ton |
70 |
|
Max. lifting torque |
kN.m |
2812 |
|
Base Boom Length |
m |
11. |
|
Fully extended boom |
|
43.5 |
|
Fully extended boom + Jib |
|
58.5.7 |
|
Overall dimensions (L×W×H) |
mm |
13950×2800×3900 |
|
Engine rated power |
kW/(r/min) |
275/2200 |
|
Max. travel speed |
km/h |
80 |
|
Counter weight |
Ton |
8 |
|
Total weight in travel |
kg |
44800 |
|
Outrigger span(Longitudinal × horizontal) |
m |
5.91×6.9 |
